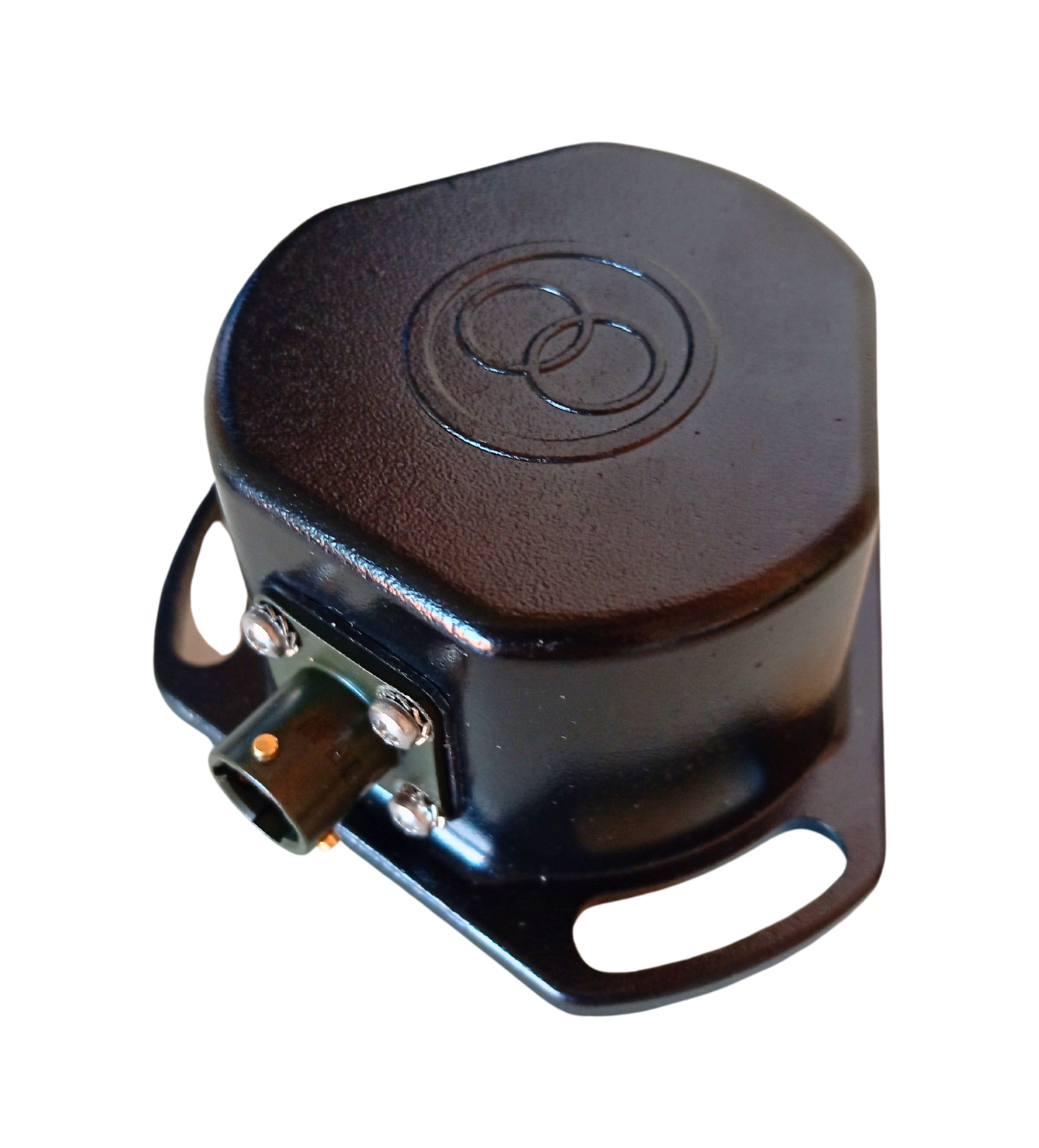

AMU-ON/OFF P 1 THRESHOLD AA NC (AMU02)

Sensor characterized by the most advanced technologies for the use of static accelerometers for the detection of angular movements on one or more axes.

Equipped with an efficient thermal compensation system, it allows use in any environment, with a high degree of reliability and precision.

It is produced in different versions, all with analogue or CAN bus output, also for security systems.

Technical specifications

-Working axis: XY

-Accuracy: 0.3°

-Measuring range: -10 ÷ 10

-Contact numbers: 4 life, 5 life

-Measurement sensor: single

-Output signal: digital on/off

-Sensitivity: 0.001 DEG/C°

-Connectors: MIL-C-26482, MI12X1

-Power supply voltage: 9 ÷ 30V

-Operating temperature: -40 ÷ 70°C

-Body material: aluminum

-Protection degree: IP67

-Approvals: EN 61000-4-2+A1; EN 61000-6-2

Its applications are the most varied, from the measurement of arm angles, stabilization systems, electronic bubble, leveling systems, bi-axial controls.

-Lifting and aerial platforms
-Agricultural machinery
-Forklifts
-Wirers
-Earthmoving machinery
-Nautical
-Automotive
-Industrial vehicles and trucks
