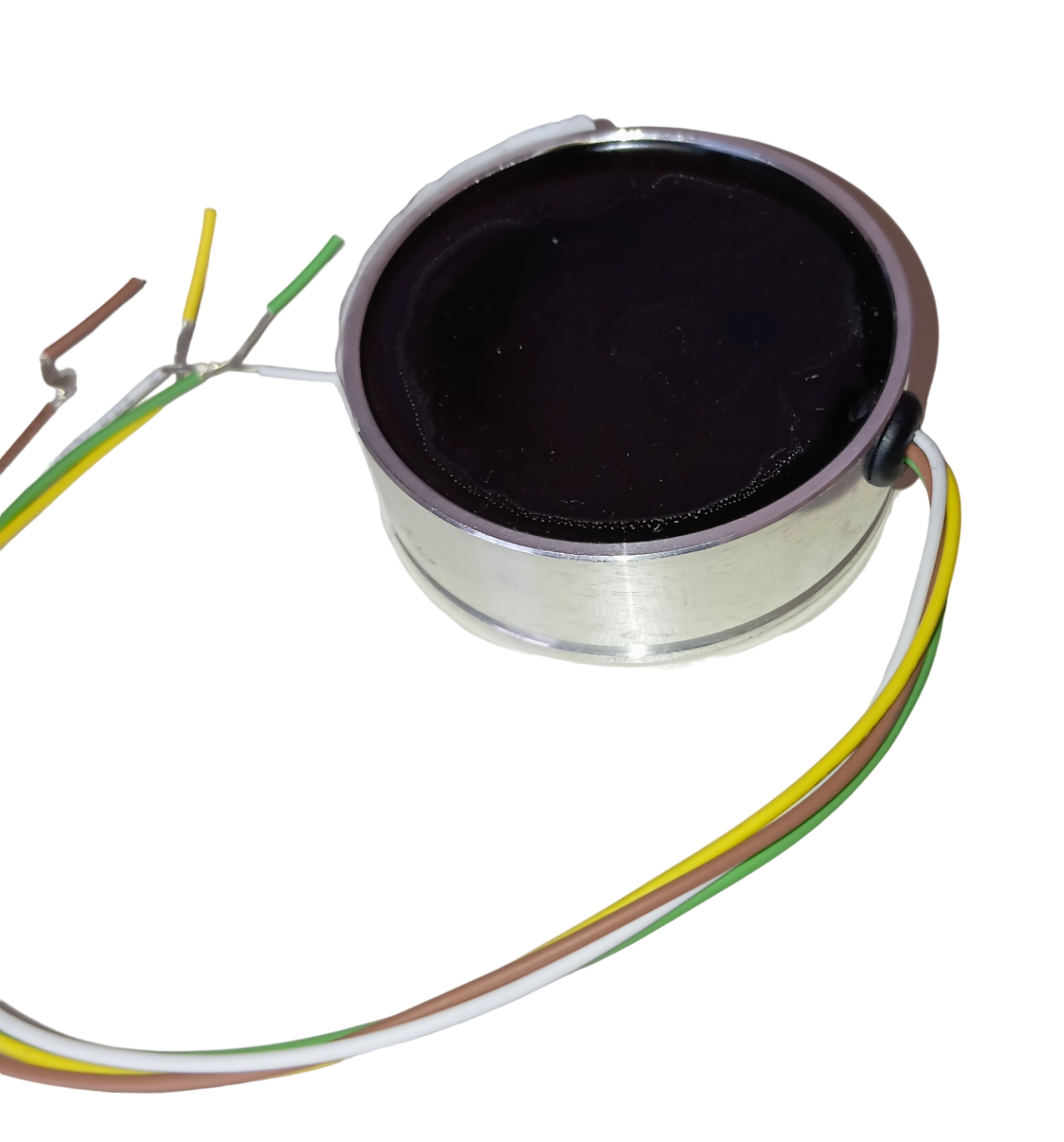

AMU1 360° ANALOG LIGHT + 5V

Single-axis angle sensor with analog output signal with single measuring sensor has a measuring range of 360°. The sensor has a power supply voltage of 5V, operating temperature of -40 ÷ 70°C, IP67 protection rating, EN 61000-6-2 (2005), EN 61000-6-4 (2007) + A1 (2011) approval .

Technical specifications

-Working axis: single axis

-Accuracy: 0.3°

-No. of contacts: 4 ways

-Measurement sensor: single

-Output signal: analog

-Sensitivity: 1.39V/0.1°

-Operating temperature: -40 ÷ 70°C

-Body Material: Black

-Protection degree: IP67

-Approvals: EN 61000-6-4 (2007) + A1 (2011); EN 61000-6-2 (2005)
