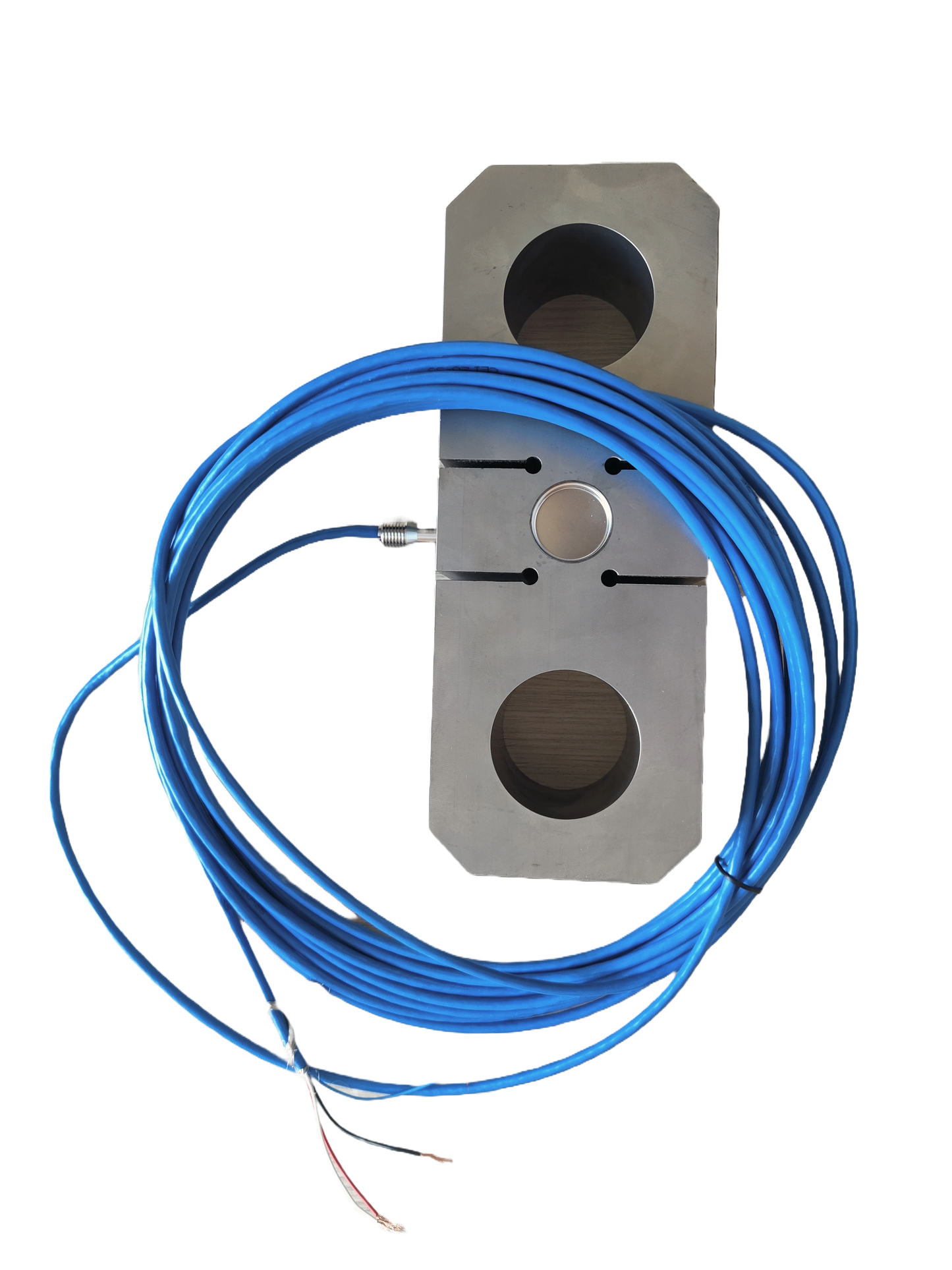

40T TENSILE LOAD CELL, 500% 4-20mA DOUBLE STRAIN GAUGE
40T TENSILE LOAD CELL, 500% 4-20mA DOUBLE STRAIN GAUGE
Brand: CELMI
Code: 409S5CDPCMA-40T
Product details
Description
40T tensile load cell, 4-20mA, dual strain gauge
Technical information
| Technical specifications: |
| -Combined error: 0.070 ±%Ln |
| -Rated load: 40t |
| -Minimum load: 5 %Ln |
| -Maximum load: 130 %Ln |
| -Linearity: 0.05 ±%Ln |
| -Hysteresis: 0.04 ±%Ln |
| -Nominal temperature range: -10 +40 °C |
| Electrical characteristics: |
| -Nominal output: 2mV/V |
| -Nominal output tolerance: 0.1 ±%Cn |
| -Nominal supply voltage: 1÷12 V |
| -Maximum supply voltage: 15V |
| Mechanical characteristics: |
| -Breaking load: >300%Ln |
| Environmental conditions: |
| -Operating temperature range: -40 +80 °C |
| -Storage temperature range: -40 +80 °C |
| -Protection degree: IP68 |
