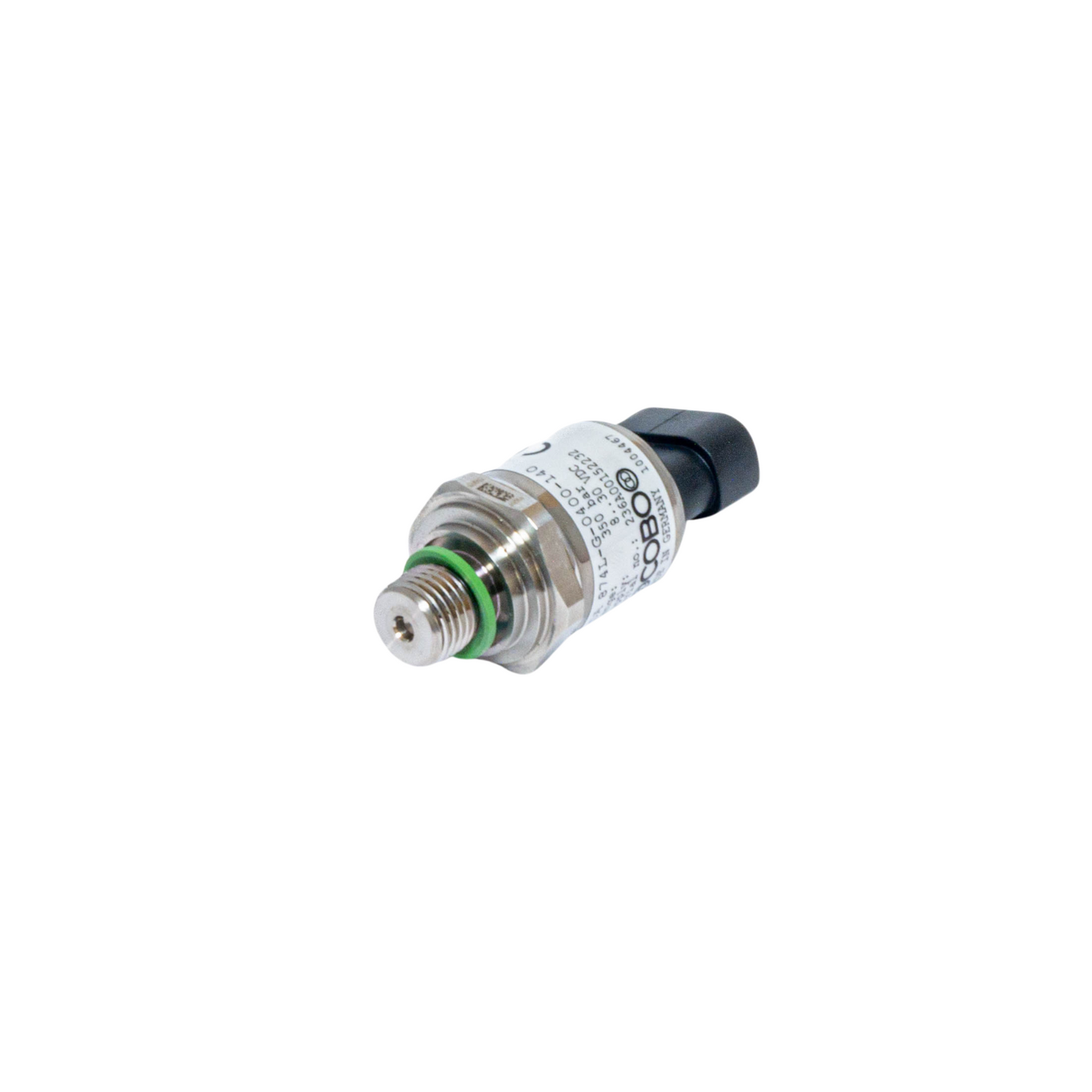

PRESSURE TRANSDUCER 200BAR

Amplified pressure sensor with analog voltage or current output.
The unit is installed in hydraulic circuits with ¼” BSPP threads.
Usually used for pressure sensing in hydraulic circuits of mobile machines.
Rated with IP65 stainless steel housing and DIN 43650 standard connector.
Optional IP68 version with Cannon connector

Technical specifications:

-Measuring 200 bar

-Parts in contact with pressure: stainless steel

-Output signal 0.5 ... 5.5V ( 4 - 20mA)

-Compensation temperature Max ≤0.15%/10K; Typ.≤0.08%/10K

-Nominal temperature range -25 ...+85°C

-Working temperature range -40 ...+85°C

-Storage temperature range -40 ... +100°C

-IP65 protection

-Supply voltage 12 ...30V

-Current consumption approx. 15mA

-Certificazioni EN 50081-1; EN 50081-2; EN 50082-1; EN 50082-1;
