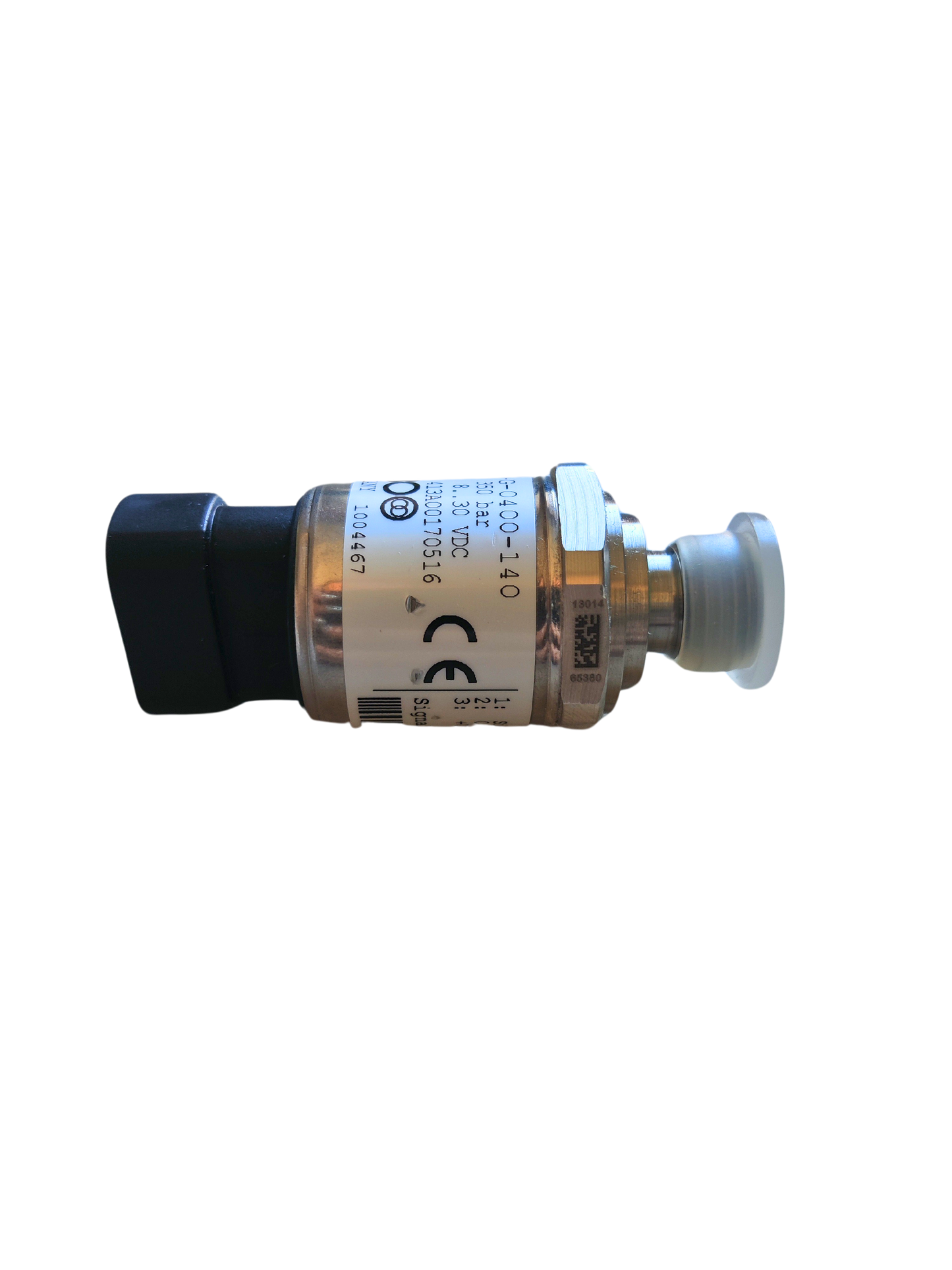

PRESSURE TRANSDUCER 350BAR

PRESSURE TRANSDUCER 350BAR

Brand: COBO-3B6

Code: 1004467 - Y11 874-LG-350

View full details

Product details

Description

Amplified pressure sensor with voltage output.
The unit is installed in hydraulic circuits with ¼” BSPP threads.
Usually used for pressure sensing in hydraulic circuits of mobile machines.
Rated with IP67 stainless steel housing and Amp Superseal connector.

Technical information

 Technical specifications:
-Measuring 350 bar
-Parts in contact with pressure: stainless steel
-Output signal 0.5 ÷ 5.5V
- Nominal temperature range from -25°C to +85°C (from -13°F to +185°F)
-Working temperature range from -40°C to +85°C (from -40°F to +185°F)
-Storage temperature range from -40°C to +100°C (from -40°F to +212°F)
-IP67 protection
-Power supply voltage 9 ÷ 30V
-Certification EN 61000-6-1, EN 61000-6-2, EN 61000-6-3, EN 61000-6-4
