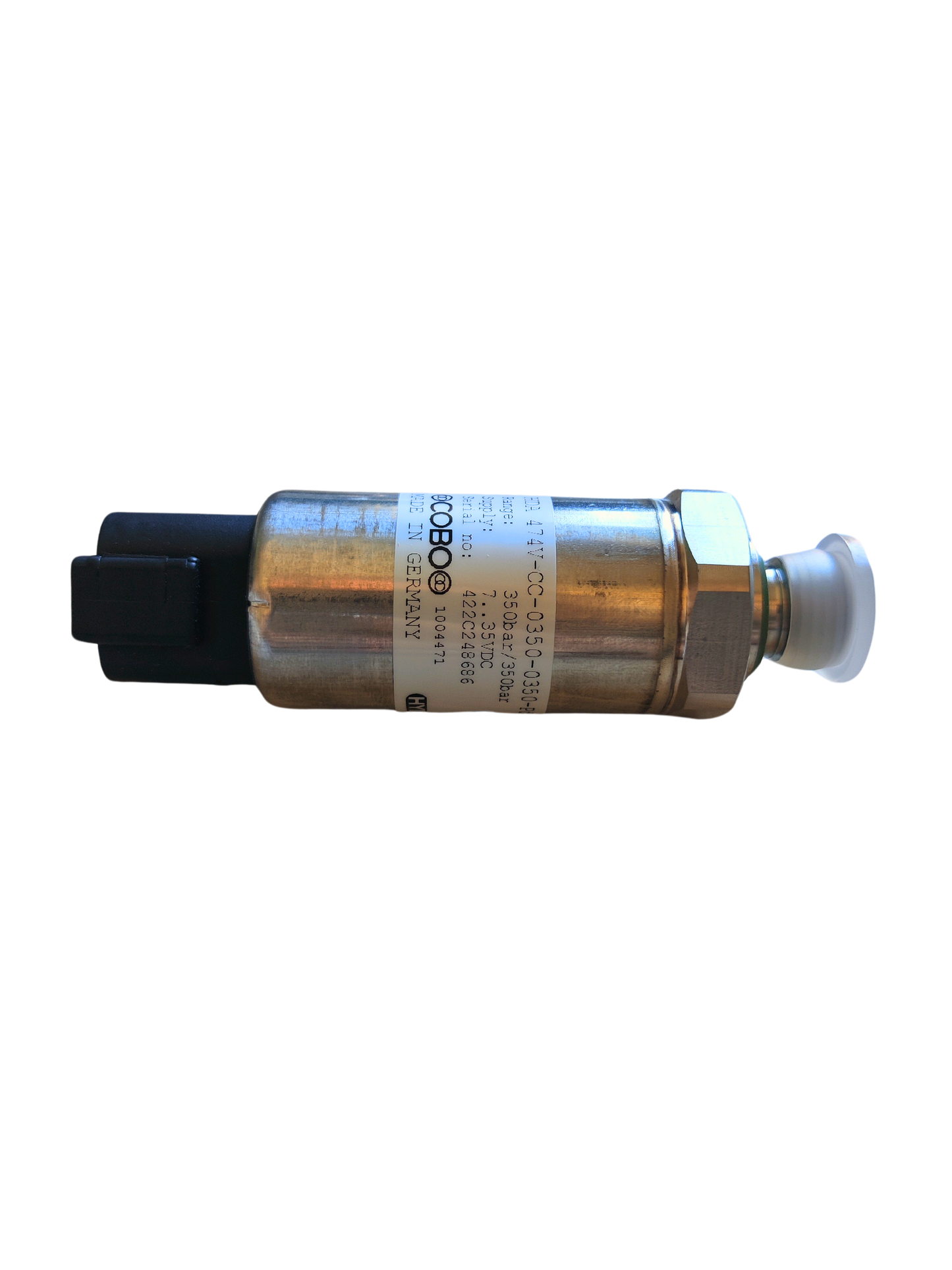

PRESSURE TRANSDUCER 350BAR, CROSS CHANNELS

PRESSURE TRANSDUCER 350BAR, CROSS CHANNELS

Brand: COBO-3B6

Code: 1004479

View full details

Product details

Description

350 bar cross-channel pressure transducer.

Output signal 1: 4 .. 20 mA; 0 .. 350 bar
Output signal 3 20...4 mA; 0 .. 350 bar

HDA 474V-CC-0350-0350-Pd-140(4-20/20-4)

Technical information

 Technical specifications:
-Measuring 350 bar
-Parts in contact with pressure: mechanical connection, stainless steel; FPM gasket
-Output signal 4 .. 20 mA; 0 .. 350 bar;
-Nominal temperature range -25 ...+85°C
-Working temperature range -40 ...+85°C
-Storage temperature range -40 ... +85°C
-IP67 protection
-Supply voltage 12 ...35V
-Electrical connection Deutsch DT04; 4 poles
-EN 61000-6-1 / 2 / 3 / 4 certifications
