PRESSURE TRANSDUCER 350BAR WITH DEUTSCH CONNECTOR CURRENT OUTPUT

PRESSURE TRANSDUCER 350BAR WITH DEUTSCH CONNECTOR CURRENT OUTPUT

Brand: COBO-3B6

Code: 1004453

View full details

Product details

Description

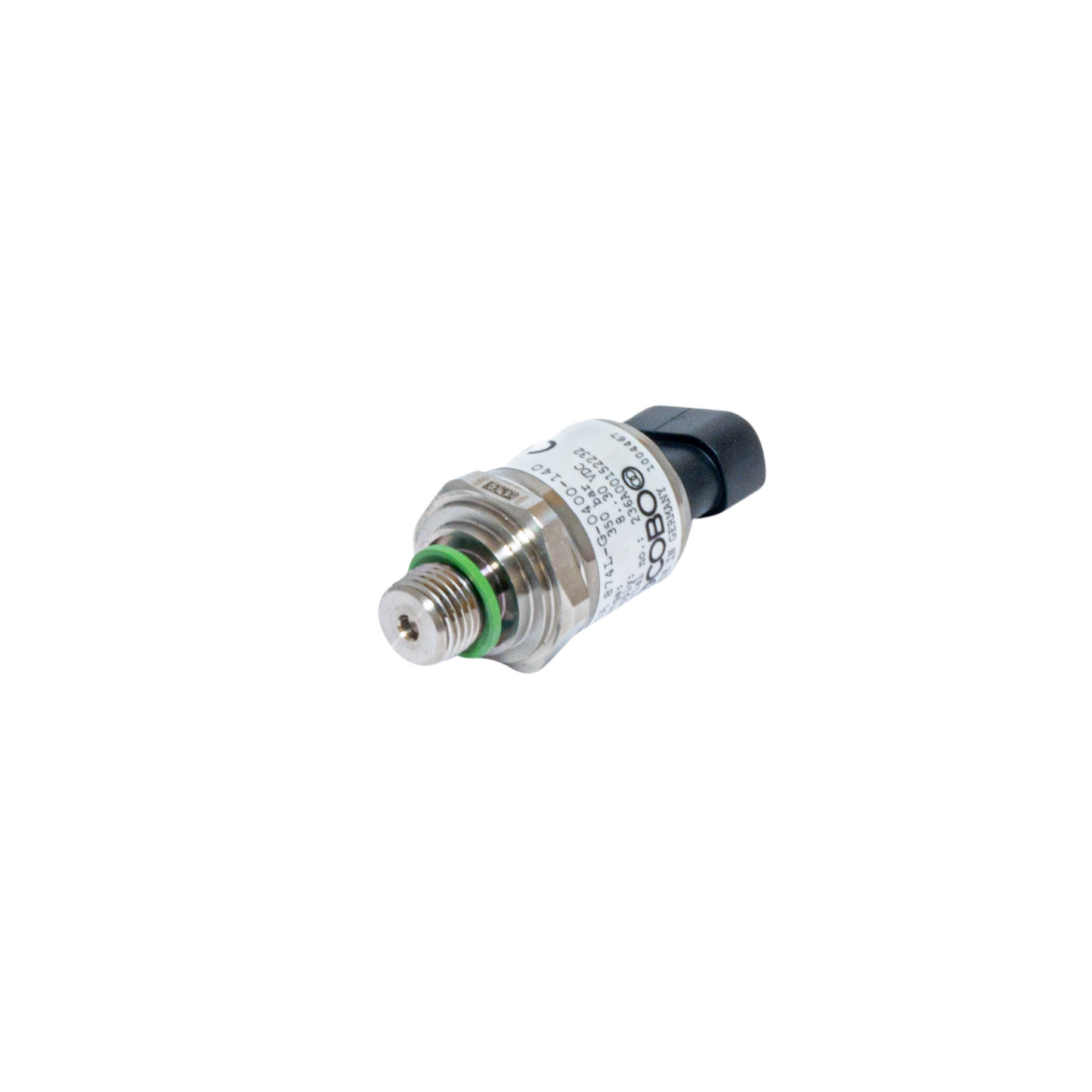

350 bar pressure transducer with Deutsch connector, current output.

HDA 874K-A-0400-140(350bar)

Technical information

 Technical specifications:
-Measuring 350 bar
-Parts in contact with pressure: stainless steel
-Output signal 4 .. 20 mA
-Nominal temperature range -25 ...+85°C
-Working temperature range -40 ...+85°C
-Storage temperature range -40 ... +100°C
-IP67 protection
-Power supply voltage 9...30V
-Electrical connection: Pin A: + Signal; Pin B: free; Pin C: - Signal
-EN 61000-6-1 and -2 certification; EN 61000-6-3 and –4
