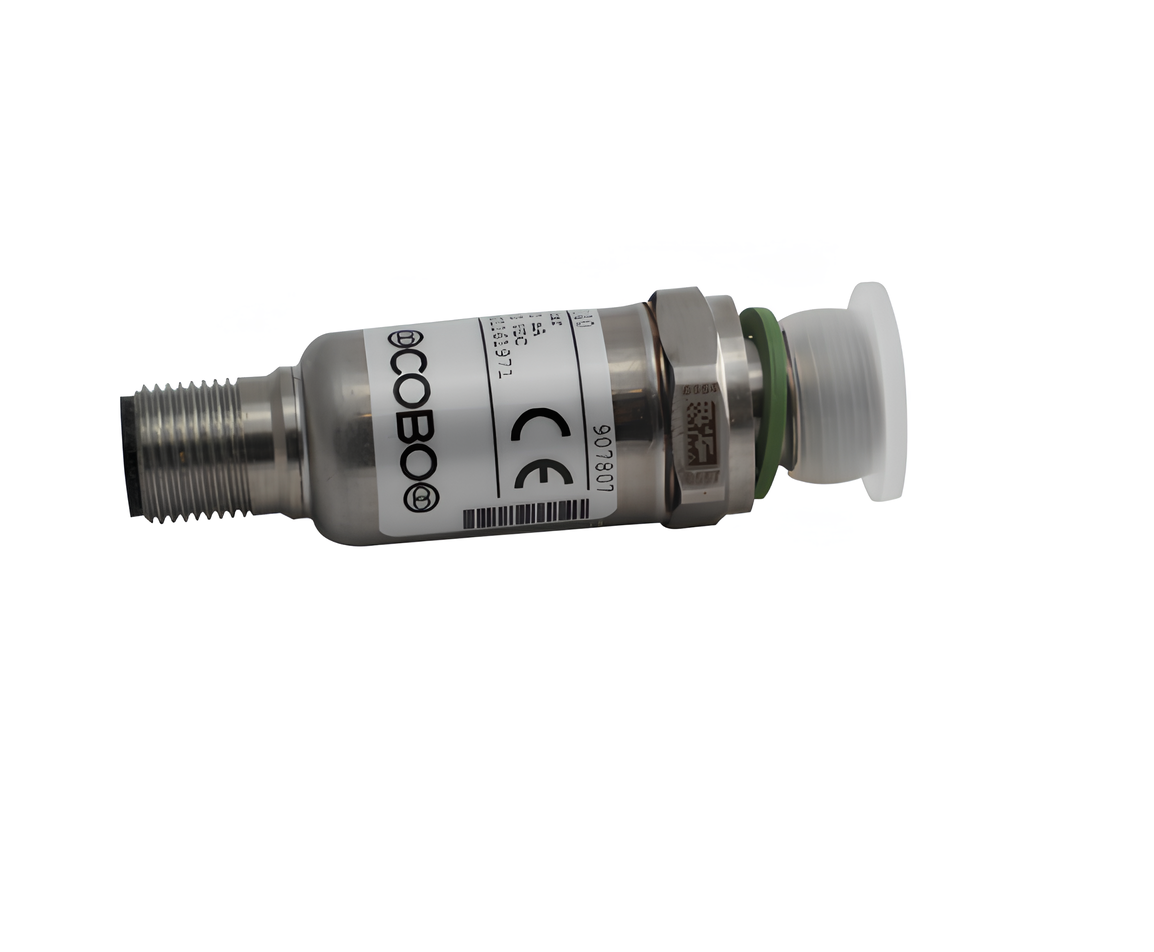

PRESSURE TRANSDUCER 350BAR (IP67)

The series of pressure transducers is characterized by small dimensions and high mechanical robustness; It is composed of instruments designed specifically for industrial OEM applications and is indispensable when accuracy, repeatability and stability of the measurement are necessary.

The transducers of this family use a thin film sensor, resistant to mechanical shocks. Maintains accuracy under extreme dynamic conditions, and in hostile environments.

Available in the double sensor version, useful when it is necessary to obtain a Performance Level in safety systems according to EN13849.

Typical applications are pressure measurement in load or moment limitation systems.

Technical specifications:

-Mechanical connection: G1/4A DIN 3852

-Electrical connection: M12x1; 4 poles

-Output signal: analog, electrical voltage 2x4.. 20mA, 4 conductor

-Measuring range: 350bar

-Number of internal sensors: 2

-Output signal: 0.5 ... 5.5V ( 4 - 20mA)

-Temperature compensation: Max ≤0.15%/10K; Typ.≤0.08%/10K

-Precisione: Max ≤0.3%FS; Typ.≤0.1%FS

-Nominal temperature range: -25 ...+85 °C

-Operating temperature range: -40 ...+85 °C

-Storage temperature: -40 ... +100°C

-Fluid temperature range: -40 ... +100°C

-Protection class: IP67

-Power supply voltage: 7...35 V DC

-Current consumption: 25mA

-Standard applied: compliant with EN ISO 13849-1

-Certificazioni: EN 50081-1; EN 50081-2; EN 50082-1; EN 50082-1;
