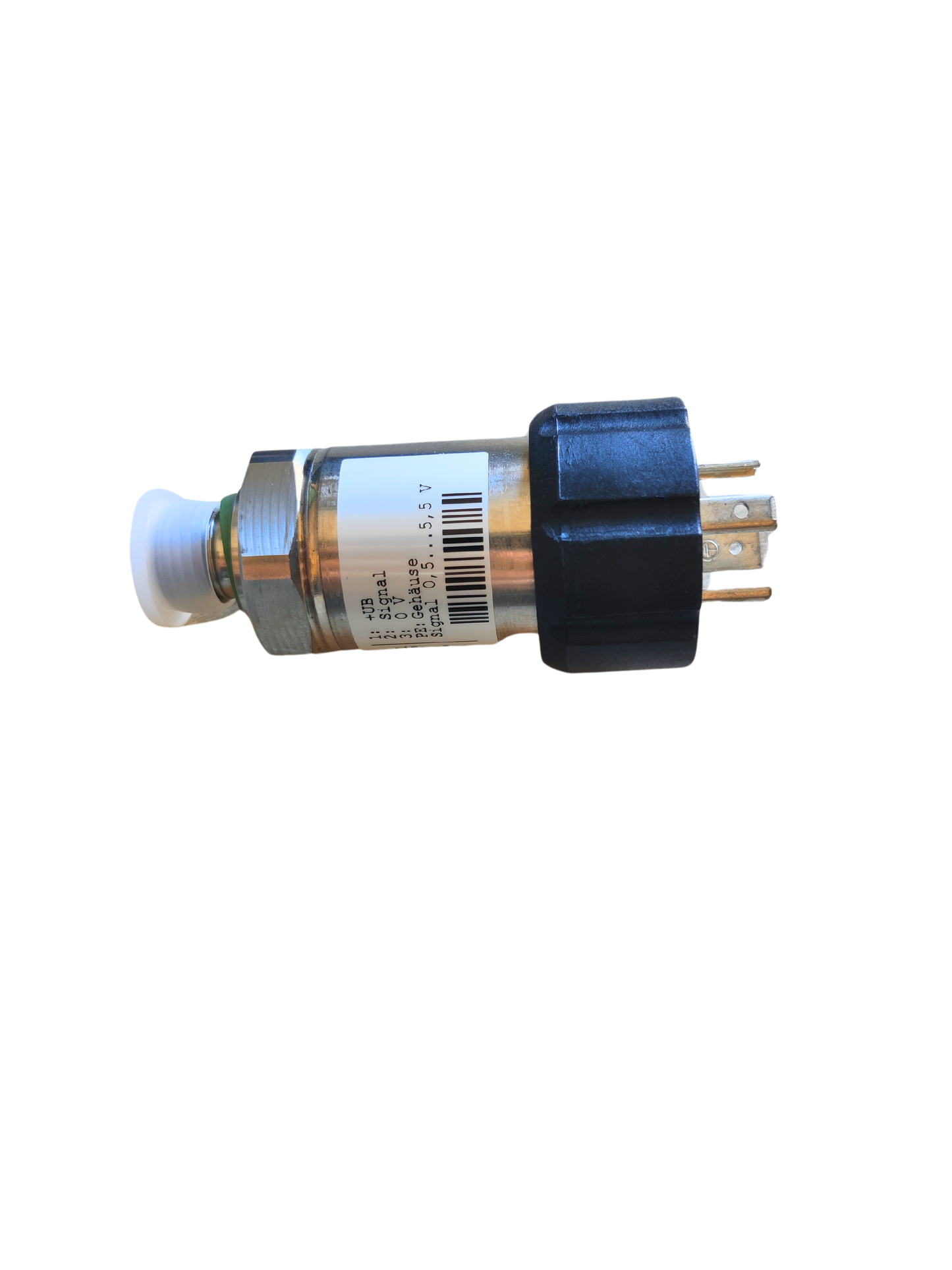

PRESSURE TRANSDUCER 400BAR

Pressure transducer (Y11 7446) with excellent technical performance combined with a very compact design, especially designed for series use, e.g. mobile applications.
The transducer is based on the use of a strain gauge membrane which turns out to be a solid and long-lasting solution.

Technical specifications:

-Measuring 400 bar

-Overload pressure 500 ÷ 800 bar

-Peak pressure 1500 ÷ 2400 bar

-Mechanical connections G ¼“ A male DIN 3852

-Fixing tension 20 Nm

-Parts in contact with medium pressure Stainless steel

-Output signal 4-20 mA

-Deviation curve at maximum setting ≤ ± 0.5% FS type

-DIN 16086 (accuracy class) ≤ ± 1% FS max

-Deviation curve at minimum setting ≤ ± 0.25 FS type

-Nominal temperature range from -25°C to +85°C

-Working temperature range from -40°C to +85°C

-Storage temperature range from -40°C to +100°C

-DIN 40050 IP67 protection

-Power supply voltage from 12 to 30 Vdc

-Electrical connection M 12x1 male connector

-CE marking: EN 50081-1; EN 50081-2; EN 50082-1; EN 50082-2
