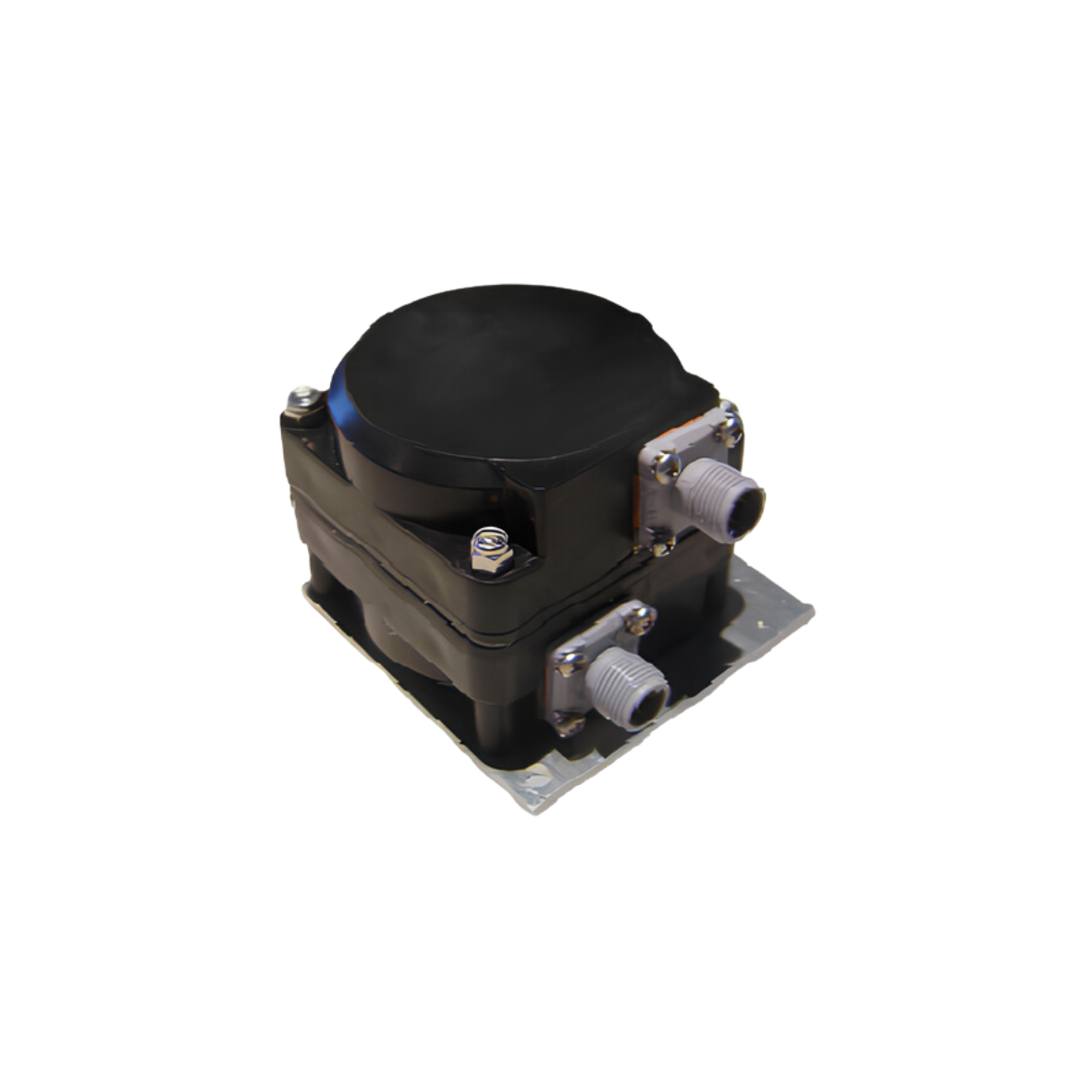

DOUBLE ANGLE SENSOR UNIT CAN BUS METAL CONNECTOR M12

DOUBLE ANGLE SENSOR UNIT CAN BUS METAL CONNECTOR M12

Brand: COBO-3B6

Code: 1033611

View full details

Product details

Description

Device designed for applications on mobile machines, uses two internal sensors operated by a microprocessor.

It is compact, easy to install and very robust, withstanding up to 1000g. It measures the 360° angle to gravity and provides a corresponding analog output.

The basic version connects via two M12 connectors, while the U2ASA-CB model is equipped with CANBUS sensors.

Technical information

 Technical specifications:
-Electrical power supply: 8 ÷ 32 Vdc (works directly with the vehicle power supply)
-Power current: 2x 30 Ma
-Baud rate: programmable (50, 100, 125, 250, 500, Kbit/sec.)
-Identifier range: programmable 11-29 bits
-Transmission speed: programmable in 20 ms steps
-Measuring range: 0° ÷ 360° - Zero angle
-Precision and linearity: ± 0.2 degrees at 25°C ± 0.4 degrees at operating temperature
-Housing: Plastic with aluminum subplate
-Operating temperature range: -40°C to +80°C (-40°F to +176°F)
-conservation temperature range: from -40 ° C to +85 ° C (from -40 ° F to +185 ° F)
-Protection: IP67
-Connectors: M12

Applications

It is suitable for cranes, access platforms, excavators and drills.
